BKD -2000 More Stable Two Stages High Pressure Pneumatic Conveying Blower

Brand Name : BK

Model Number : BKD-2000

Certification : ISO9001 / ISO14001/CE

Place of Origin : CHINA

MOQ : 1 SET

Price : USD 8550- USD 9440

Payment Terms : L/C, T/T

Supply Ability : 20 SETS PER MONTH

Delivery Time : 50 WORK DAYS

Packaging Details : WOODEN CASES

Name : Three lobe Roots Blower

NAME : BKD-2000

Color : Customization

Air Capacity : 6.05m3/Min-14.74m3/Min

Main Materials : Cast Iron

Outlet size : DN80(3")

Blower RPM : 850-1500

Voltage : 380V/400V/415V/440V/Customized

Frequency : 50HZ/60HZ

Contact Now

About BKD
BK Roots Blower is a kind of product designed and manufactured according to the national standards and by the techniques introduced from American TUTHILL Co. This type blower is featured with simple structure and high cubage efficiency.
BKD series is a dual stage roots blower, which has two BKWblowers in series, can achieve higher pressure comparing with single one, also there is a middle cooling system between the first and the second stage, it ensures the standard temperature of the airflow to the second blower.

Specifications:

Model	BKD2000
Air capacity	6.05m3/Min-14.74m3/Min
Discharge differential pressure	100-150KPA
Rotary speed	BKW6008(850rpm-1500rpm),BKW6005(850rpm-1500rpm),
Motor type	15KW-45KW 380/400/415/440V, 3PHASES, 50/60HZ
Installation type	Standard: horizontal type. Vertical type available for your option
N.W. of blower without motor	615 kg
Packing size Approx.	1.651.651.95m (lengthwidthheight)
Features	1. Helical type timing gears for smooth operation 2. Compact, flexibility in installation gives users more choices. 3. Integral structure of impeller and shaft for more stable transmission of power 4. Adopt imported oil seals made from fluoric rubber with better wear resistance and high-temperature resistance. 5. Low noise, low vibration and energy consumption.

Parameter

Type	Suited Blower	Port Dia	Speed		Inlet airflow(m3/min)and shaft power(KW)at different conditions								Cooling water
			Speed
			rpm		100kpa		120kpa		140kpa		150kpa
			1	2	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	L/min
BKD-2000	BKW6008+BKW6005	80(3'')	850	850	6.42	16.43	6.11	18.33	5.84	20.73	5.76	22.04	40
			1000	1000	8.17	19.33	7.87	21.57	7.60	24.39	7.52	25.92
			1150	1150	9.93	22.22	9.63	24.80	9.36	28.05	9.28	29.81
			1250	1250	11.11	24.16	10.80	26.96	10.53	30.49	10.45	32.40
			1400	1400	12.87	27.06	12.56	30.19	12.29	34.14	12.21	36.29
			1500	1500	14.04	28.99	13.73	32.35	13.46	36.85	13.38	38.89

Working Principle

Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and dischargeing air. Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.

Two paraller shafts have three lobes each, all the lobes keep small clearance with each other and housing inside. Every lobes rotatiomn, a certain air will be absorbed at inlet and transfeered form the housing inside surface to blower's diacharge port.

Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high speed without any lubrication inside. It has the following chaaracteristics: simply configuration; running smoothly;good performance stabilization. It has been widely applied in various industries.

BKD -2000 More Stable Two Stages High Pressure Pneumatic Conveying Blower

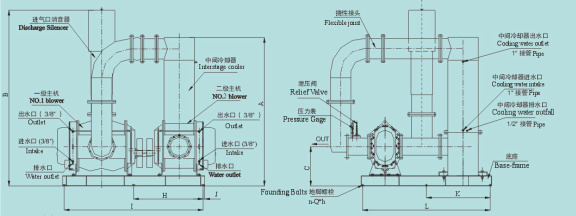

Structure of blower

Structure of main body

Application

Exihibition
